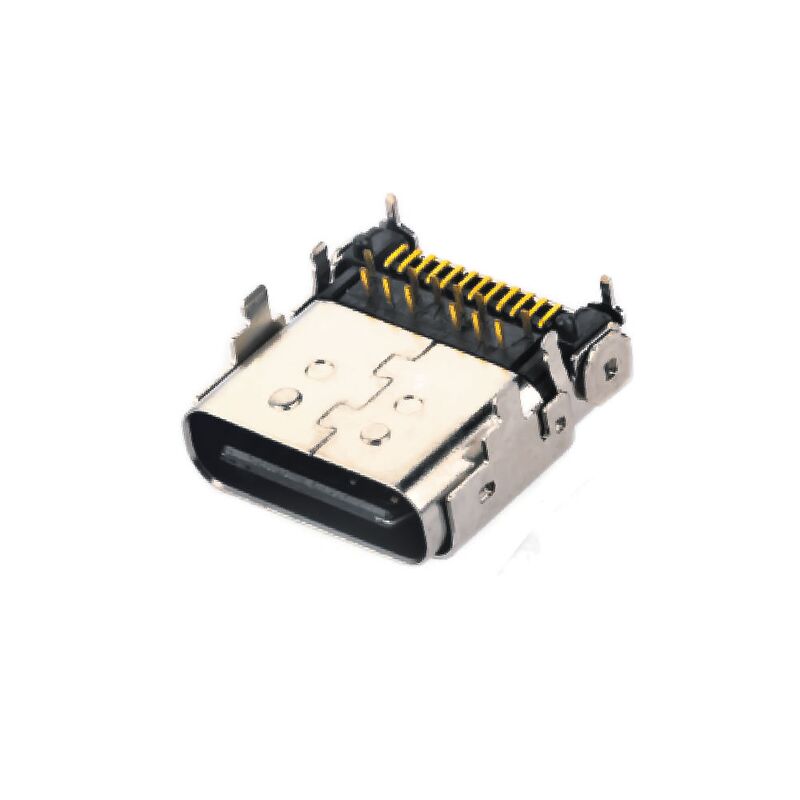

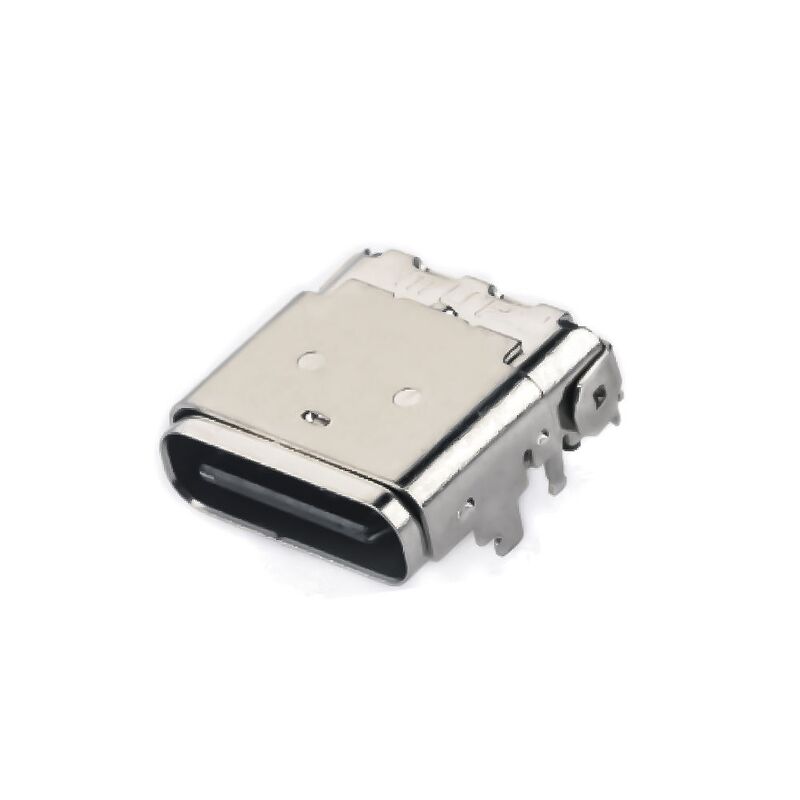

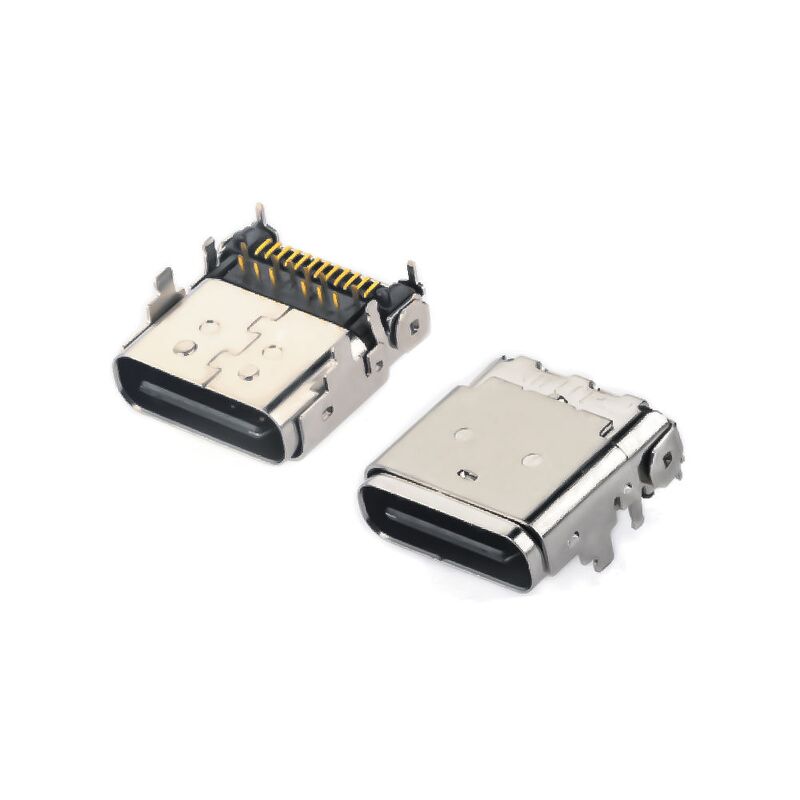

24PIN USB 3.1 Type C Female Hybrid Right-Angle Receptacle Connector for Phone Charging and Fast Data Transfer
Description
|
Insulator
|
LCP UL94V-0, Black
|
|
Shell
|
Stainless Steel
|
|
Contacts
|
Coppy Alloy, Contact: Gold Plated, Nickel Under Plated Over All
|
|
Current Rating
|
5A
|
|
Dielectric Withstand Voltage
|
No Breakdown Leakage current: 0.5mA Max
|
|
Contact Resistance
|
40 Millonhm Max
|
|
Insulation Resistance
|
100 Megohms Min.
|
|
Operating Temperature
|
-40℃~+ 85℃
|
|
Mating Force
|
0.5~2.0Kgf
|
|
Unmating Force
|
Initial:0.8~2.0Kgf After 500 to 10,000 cycles:0.6~2.0Kgf
|
|
Durability
|
10,000 Cycles
|
|
Certification
|
ISO9001,ROHS,SGS
|
|
Packaging
|
Tape&Reel
|
|
SPQ
|
1000PCS/Reel
|
● Offering IC,SIM,memory card,HDMI,USB Type-C battery, RF ,FPC ,BTB and other kinds of precision connectors
● Products widely used in POS, STB,DTV,automotive electronics, network communication,smart meters and other
electronic products
● Exporting to 50+countries in Europe,North and South America,Asia and Africa
● Supplying Ingenico,Sagemcom,Tech-Front and Teltonika
● IS0 9001:2015
Material Specification
1) Mid Plate: stainless steel
2) Front shell: stainless steel
3) Housing: Hig Temperature resistant plastic, UL94 V-0.
4) Contacts: Copper Alloy
Our Service
1. Lead customers to choose the best connection solution way.
2. 20pcs free sample. Support more than 20pcs sample for old customers.
3. OEM/ODM service. We have a strong R&D team to support connector design.
4. Quickly respond, email reply within 12 hours, online inquiry is welcome.
5: Service attitude: our business is not just connector supply, it's about delivering promises.
Product Application
USB specifications can be divided into 90 degrees, 180 degrees, direct type, and patch type. MIRCO type. USB type. MINI type and other USB main controllers are responsible for data flow between the host and the USB device. These transmitted data are treated as continuous bit streams.
FAQ
Q, How long can I expect to get the sample and mass order?
A: For sample orders, the delivery time is in 3-5 days; and for mass orders, the delivery time is in 5-7 days. It depends on your quantity and our inventory.
Q, Can you print our customized logo?
A: Yes, of course. We have a professional design team and complete production lines. Just provide the details required to us, and we will be happy to customize your logo and print it on your order.
Q, What are your payment terms?
A: T/T 30% deposit with order and balance paid before shipment; Paypal is OK, and L /C is acceptable when the total amount is more than US$10,000.
Q, How can I order?
A:1, Choose the USB C TYPE Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.
3, Once we confirm your payment, your order will be started and finished within 5-7 days depending on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after-sales service
Q, If quality issues happened, what should I do?
A: Just email us or contact us about your complaints problems, and we will forward it to our related departments and come back to you with a satisfied solution within 24 hours
